MOVEABLE FLOOR
In the last years swimming pool facilities experienced the increase of new water sports and swimming activities to be performed in the pool, as water aerobics, synchronized swimming, rehabilitation activities,… but they require different levels of water depth. For this reason ZetaPool did a careful analysis of the new activities and the existing swimming facilities where these are carried out, to study various solutions to adjust the water level to each situation.
The main resolution ZetaPool studied is a platform called “movable floor”, composed of a stainless steel frame 304 (or 316L upon request) covered by polyethylene grids.
The different types of movable floor are designed to perfectly integrate into both already existing and under construction pools.
ZetaPool offers two different types of mobile floor:
- automatic version;
- manual version.
The use of pools and the management of swimming facilities is getting more complex day by day, and the technology of “mobile floor” is rapidly expanding to provide solutions that allow multiple activities in the same area with different levels of water depth.
Cod: 2013 Automatic moveable floor
____________________________

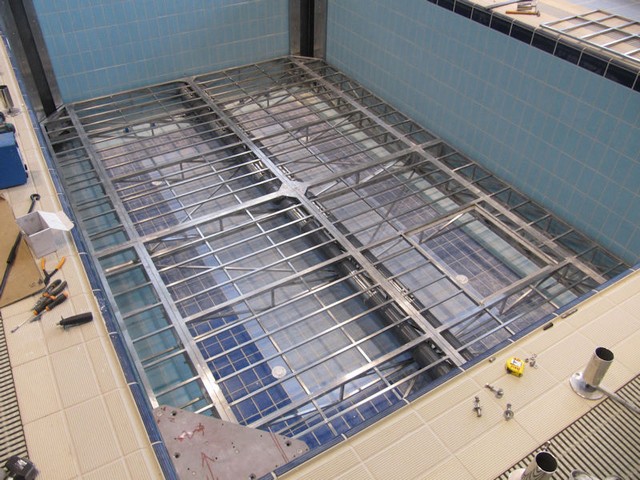

he
automatic movable floor is used to adjust the level of water to each
activity the swimming pool may offer. It consists of an assembly
of reticular spatial beams made of welded stainless steel sections
connected and braced to each other in order to achieve a homogeneous
and resistant platform.
The
structure is connected to the edge of the pool through angle brackets
(studied and constructed each time) that contain the safety
mechanisms of the platform.
The
structure has also one or more trapdoor: to ease the regular cleaning
of the pool, the maintenance and the inspection of the entire
structure and of the handling system.
The
structure is entirely covered with grids in polypropylene compound,
insensitive to ultraviolet rays and chemical agents added
to the water.
Grids
are available in various colours. The structure use both plan and
special grids, with rounded edges, non-slip and with dark grids
delimiting midpoint of the race-lanes , in compliance with
FINA regulation
and according also to the existing lanes of the pool.
Handling
is ensured through air tanks, powered by a compressor placed in
machine room; movement is controlled by detectors that monitor at all
times the position to guarantee a correct placement of the platform.
Final
users can quickly check the platform using an
intuitive, easy-to-use control
panel.
Cod: 00310 Manual movable floor
__________________________

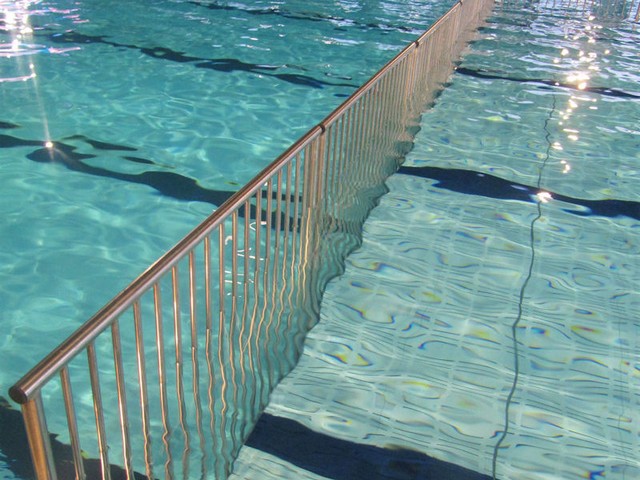

The
platform is made of standard modules of sizes 2×1 m consisting of
frames in stainless steel 304 (or
316L upon request),
supported by stainless steel legs (adjustable) and PVC feets
(adjustable).
The
structure is entirely covered with grids in polyetihylene,
insensitive to ultraviolet rays and chemical agents added
to the water
Platform
decreases water depth in circumscribed areas enabling swimming
training for children and beginners, water aerobics exercises , etc
.
Entire
platform is completely removable for regular cleaning of the pool
bottom.
